NXS Docking Station Support

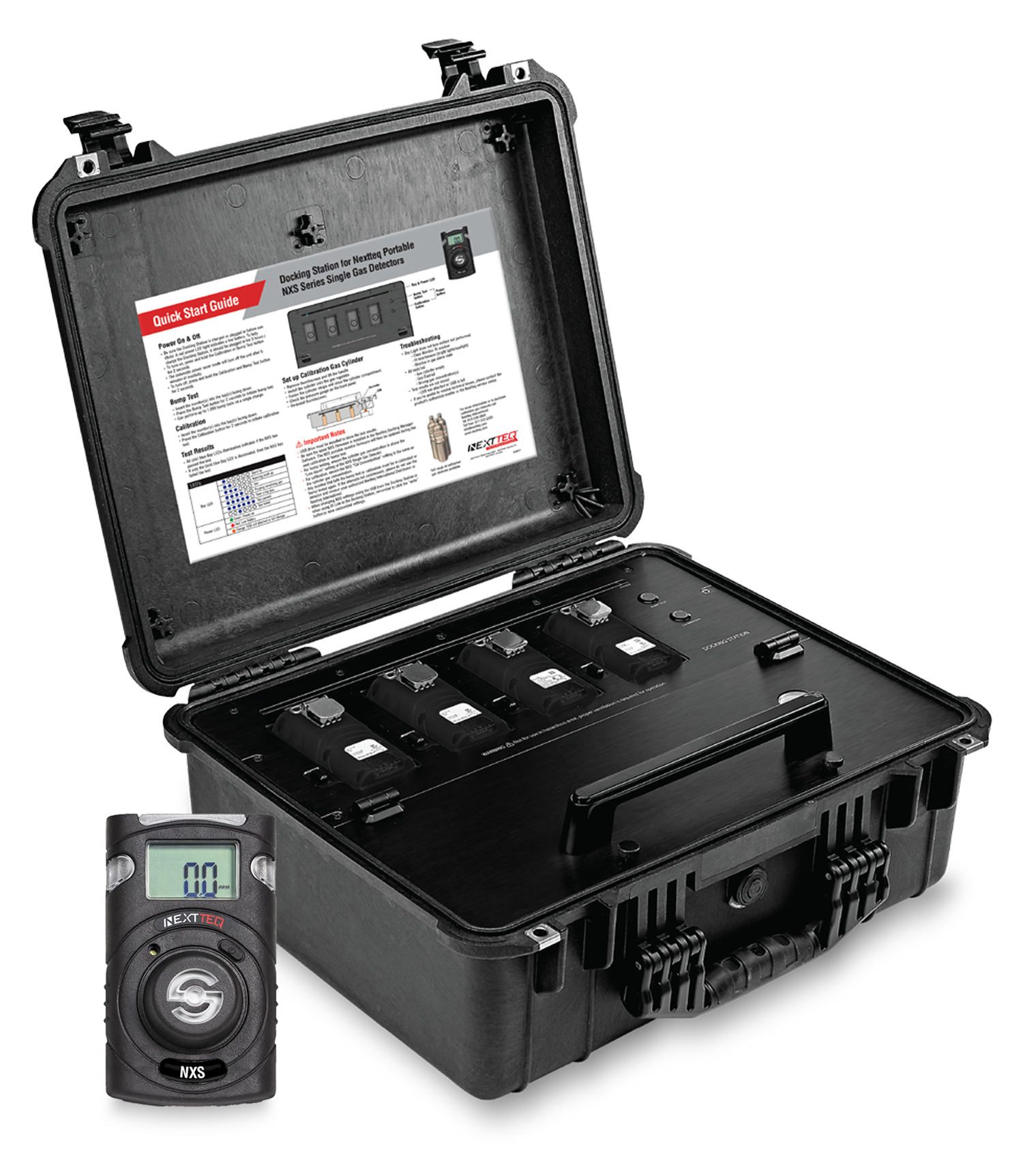

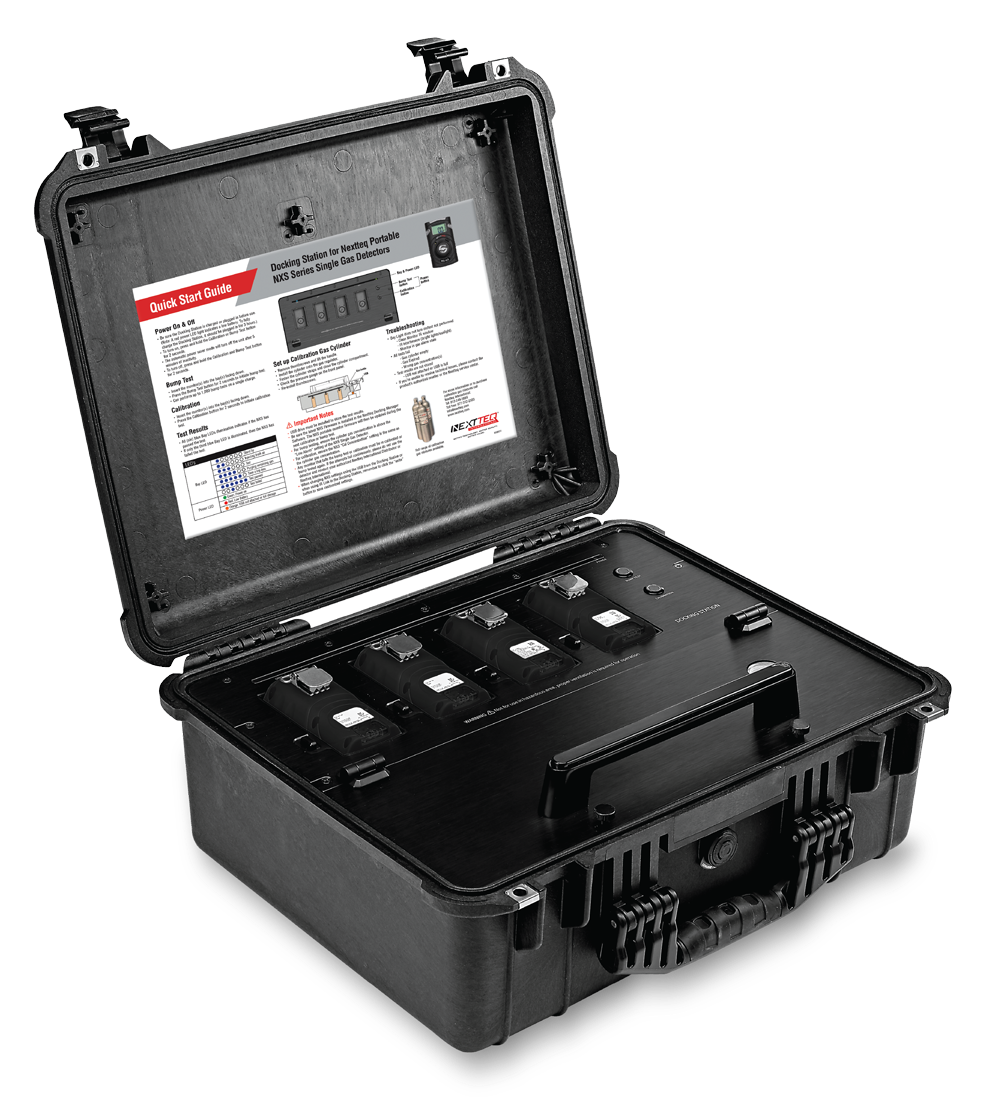

The NXS Docking Station maximizes the performance of NXS portable.  Designed for use with Hâ‚‚S, CO, or Oâ‚‚ gas, the NXS Docking Station can calibrate and bump test up to four NXS portables simultaneously, helping to reduce time. The NXS Docking Station tests the gas sensor response and alarm of the devices.



In addition, when connected the portables are connected to NXS Docking Station, it will automatically upgrade the firmware of each portable. Event logs are saved into the USB memory and provide analyses for users. The configuration can be set by connecting the NXS Docking station with IR link.


Key Features

• Calibration, Bump Test

• Displays status on Power LED and Unit LED

• Saves the status and results of Docking station and SGT

• Upgrades Docking and NXS Firmware

• Saves the log data of Docking station and SGT

• Supports user options using a PC program (IR Link/USB)


Designed to work with the following NXS portables:

  • Carbon Monoxide (CO)
  • Hydrogen Sulfide (Hâ‚‚S)
  • Oxygen (Oâ‚‚)


Model NXS Docking Station Specifications:

  • Size:   47 × 41 × 22cm (18.50 × 16.14 × 8.66 in.)
  • Weight (Without gas cylinder):   8.2kg
  • Operating Temperature:   41 to +104ËšF (5 to +40ËšC)
  • Warranty:  Full 2 years
  • Battery Type:   Rechargeable Lithium Ion
  • Battery Life:   1000 Bump Tests
  • LEDs:   5 red/green/orange LEDs (1 for each unit, 1 for power)
  • Memory:   USB 8GB Standard
  • Log Capacity:  Approximately Up to 10 million tests (8GB, removable USB memory)
  • Tests Performed:   Bump Test and Calibration
  • Information Stored:   Bump/Cal Logs, Individual Monitor Event Logs, Firmware and Unit Configurations
  • Gases Available:   CO, Hâ‚‚S and Oâ‚‚ Unit Compatibility Works with NXS
  • Calibration Gas:   Compatible with 58L cylinders
  • Charging Adaptor:   12V, 3A

Support Documents

Portable NXS Series
Manual

Portable NXS Series
Flyer

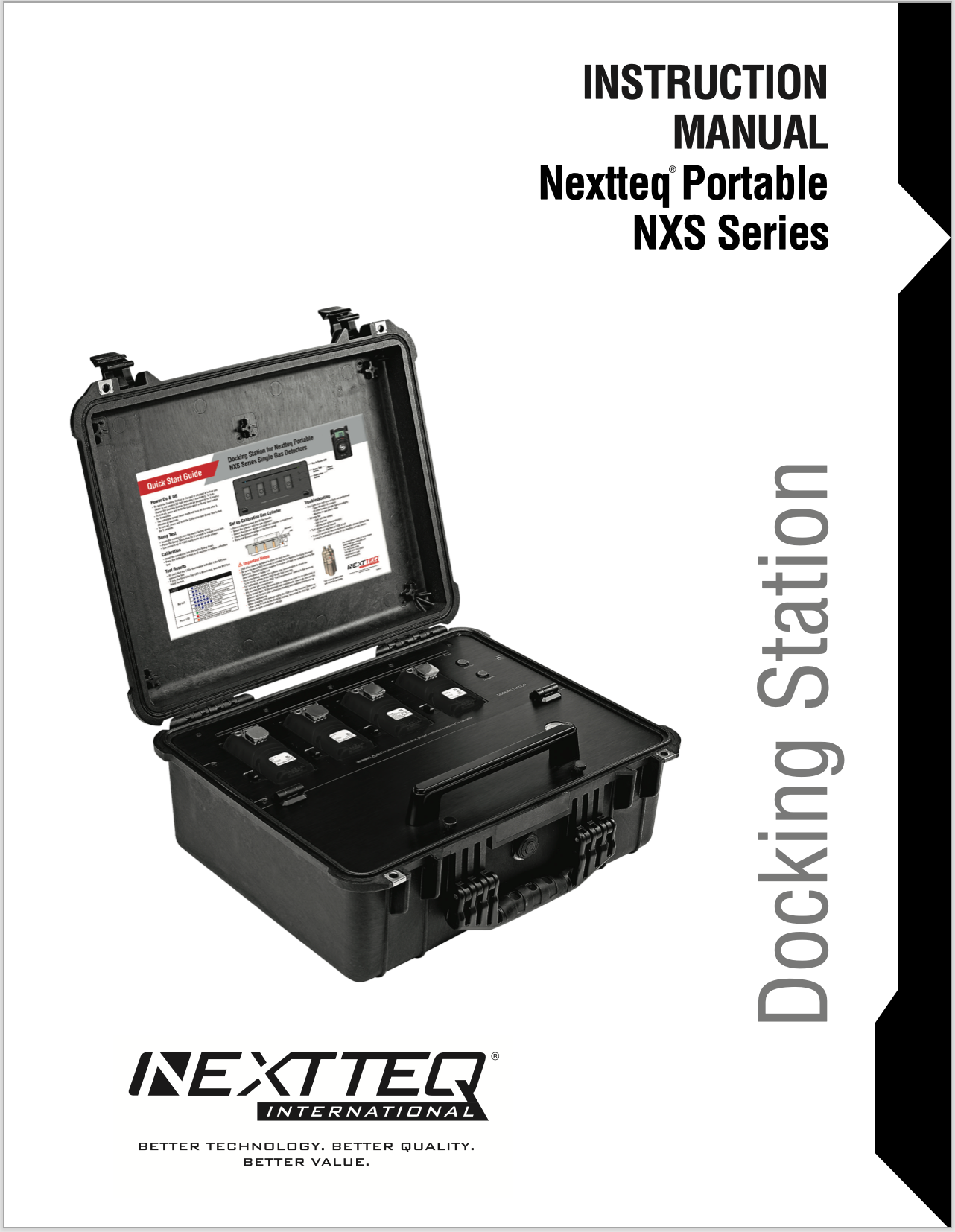

NXS Docking Station Manual

Firmware Downloads

Firmware for NXS CO:

Firmware for NXS H2S:

Firmware for NXS O2:



Video Training

Additional Support

For more information, contact Nextteq Customer Service Team at 813-249-5888 or toll free at 877-312-2333.

For technical questions, ask to speak to Dr. Duffy, VP of Technical Development / Industrial Hygiene Manager.
