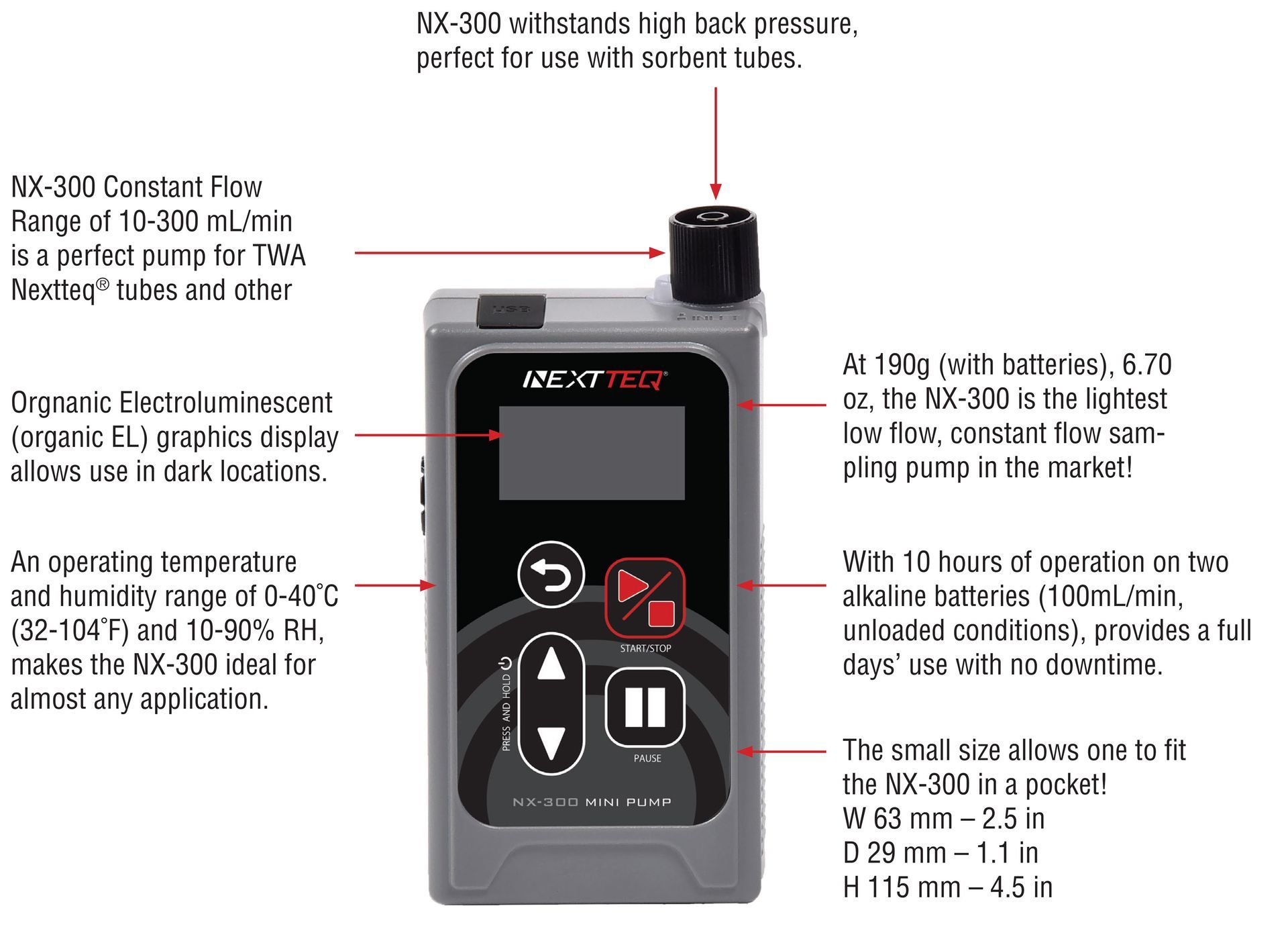

NX-300 Constant Flow - Low Flow Air Sampling Pump
Specifications for NX-300 Contant Flow
Model | NX-300 |
---|---|
Pump Method | Diaphragm type |
Weight | 6.7 oz (with batteries) / (190g) |
Size | 2.5(W) X 1.1(D) x 4.5(H) in / |
63(W) x 29(D) x 115(H) mm | |
Flow Accuracy | ±5% or ±5mL/min of the set flowrate value, whichever is larger |
Flowmeter | Differential pressure type |
Variable Flow Rate Range | 10∼300mL/min |
Constant Flow Rate Usage Range | 10mL/min: 0∼10kPa 50mL/min: 0∼30kPa |
100mL/min:0∼30kPa 200mL/min:0∼20kPa | |
300mL/min: 0∼10kPa | |
Suction Port | Outer diameter DIA.6 and DIA.8 mm (tubes used: inner diameter DIA.5 and DIA.7 mm) |
Instantaneous Flow Rate Display Range | 10~450 mL/min |
Time Settings | 000:00:00~999:59:59 (hours.minutes.seconds) |
(in case of time setting, Hour: Minute) | |
Operation Mode | Manual, down timer, |
volume timer, interval timer | |
Pause Function | Pause is possible by pressing the PAUSE button |
Display | Organic EL display |
Cumulative Flow Rate Display | 0.000-9999.9L |
Operating Environment | Temperature 0-40ºC, Relative humidity 10-90%(Provided there is no condensation) |
Power Supply | 2 AA batteries, DC5V (microUSB) |
Operating Time | 10 mL/min : 10 hour (No load) |
100 mL/min : 10 hour (No load) |
