Nextteq® Accessories

Nextteq® NX-1000 Pump Accessories

Accessory Description

> Extension Hoses

All of Nextteq®’s Extension Hoses (5, 10, and 20-meter) easily screw onto Nextteq®’s NX-1000 gas sampling pumps and safely enable efficient remote sampling of gases by non-technical personnel. No tools are required for assembly. All Nextteq® extension hoses have a narrow diameter to fit into tight spaces and are constructed of synthetic rubber for flexibility, strength, and durability.


5 and 10 Meter Extension Hoses: The convenient 5 and 10-meter hose design eliminates the need for you to factor in hose line air volume when sampling. Sample results can be read directly from the detector tube; no additional calculations, charts or correction factors are required.

A man taking a sample inside a manhole using the Nextteq® NX-1000 Pump and a Nextteq® Extension Hose.

5-Meter Extension Hose

P/N NX90154


10-Meter Extension Hose

P/N NX90147


20-Meter Hose: Designed to satisfy demand for efficient and complete sampling of a ship’s large cargo holds, stack sampling, and other deep confined spaces: the 20-meter hose is identical in materials, construction and method of assembly as the 5 and 10-meter hoses. Due to the long length of the 20-meter extension hose, there is increased flow resistance causing a reduction in the vacuum which affects the length of stain. Therefore, some tubes need a correction factor and/or longer than normal sampling time to account for the reduced vacuum.


20-Meter Extension Hose with tube holder for single tube applications
P/N NX90148


20-Meter Extension Hose with tube holder for dual tube applications

P/N NX90149

> Telescoping Extension Pole

P/N NX90150



With Nextteq®’s adjustable and rigid telescoping extension pole, one person can easily conduct testing in any direction. Many times industrial hygienists and safety professionals are faced with testing in confined spaces that are not accessed from the top. Even with topside entry, it is advantageous at times to conduct testing at angles other than vertical. Remote testing at angles, horizontally or even vertically upward is possible at distances over 6 ft. (2 meters) away. Made of non-conductive, corrosion-resistant fiberglass, the pole is lightweight and rugged.

A man taking a sample in a high, hard to reach space using the Nextteq® NX-1000 Pump and Nextteq®’s adjustable and rigid telescoping extension pole.

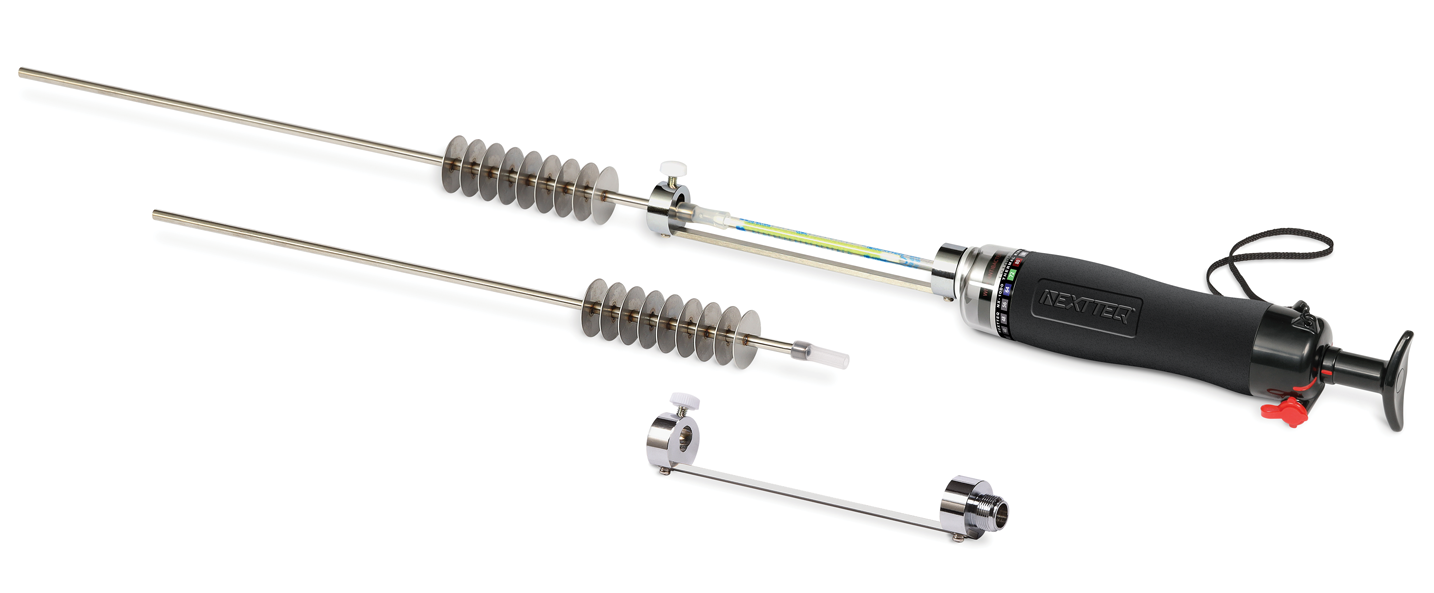

> Hot Air Probe and Hot Air Probe Holder


Hot Air Probe

P/N NX90151


Hot Air Probe Holder

P/N NX90152


Most Nextteq® detector tubes are designed to be used at temperatures in the range of 32Ëš – 104ËšF (0-40 ÌŠC). However, some samples such as flue gases, stack emissions and automotive exhaust are at elevated temperatures. The Nextteq® Hot Probe rapidly cools samples as hot as 1112ËšF (600ËšC) down to an ambient temperature before the sample enters the detector tube. The hot probe holder provides horizontal and vertical support for the tube and hot probe. No tools are required for assembly.

A man safely taking a sample at an elevated temperature by using the Nextteq® NX-1000 Pump and the Nextteq® Hot Probe.

>  Low Flow Control Orifice

P/N NX90160



Some Nextteq® detector tubes require management to the air flow in order to achieve an accurate reading. The Nextteq® Air Flow Control Orifice includes an O-ring and should be used with the following tubes: NX105, NX204SH, NX204SM, NX711, NX712, NX713 and NX714.

The Nextteq® Air Flow Control Orifice including an O-ring.

>  One Hand Adapter (NXI®)

P/N NX90146


Nextteq®’s One Hand Operation Adapter is ideal for sampling in hard-to-reach places, such as over vats and from a ladder. With the One Hand Operation Adapter and the tube inserted into the pump, the pump handle can be drawn back and locked while maintaining the pump vacuum without taking a sample. When you are ready, the pump can be activated and the sample taken with just the push of a button.

An image showing how to assemble the Nextteq® NX-1000 Pump and Nextteq®’s One Hand Operation Adapter.
A man taking a sample in a hard-to-reach space by using the Nextteq® NX-1000 Pump and Nextteq®’s One Hand Operation Adapter.

>  Nextteq® Diffusers (NXI®)


Stainless Steel Diffuser

P/N NX90101


Carbon Fiber Diffuser

P/N NX90102


The Nextteq® Diffusers, available in either a rugged Stainless Steel or a light-weight, cost effective Carbon Fiber Composite, are an exclusive offering by Nextteq®, and provide a convenient method for sampling gas in pipelines. Designed for use with Nextteq® Gas Sampling Pumps and Detector Tubes, the diffusers are intrinsically safe, rugged, reusable and maintain the sample integrity by not reacting with most chemicals. To prepare for the sample, simply screw the diffuser into a pipeline junction. Prepare the Nextteq® Pump and applicable Nextteq® Detector Tube, open the pipeline valve, insert the tube in the diffuser chamber and begin sampling.

Diffuser constructed of stainless steel
PVC Diffuser constructed of inert material.
