NXM Series

Multi Gas Detectors

Hâ‚‚S, CO, Oâ‚‚ and LEL

Nextteq's NXM Series of Multi Gas Detectors -

notably some of the most reliable detectors in the industry

A Nextteq® NXM Series Multi Gas Detector with feature call-outs.

Applications

  • Confined space entry
  • Oil & gas
  • Heavy metal & steel
  • Chemical plants
  • Pulp & paper
  • Municipalities
  • Food & beverage
  • Construction
  • First responder

Nextteq®'s NXM Series

4-gas monitors for worker protection

in hazardous environments

 easy-to-use, dependable, and rugged

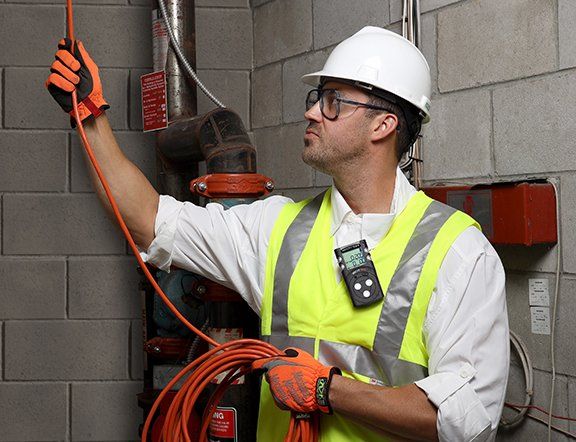

A man is running wires in a warehouse and has a Nextteq® NXM Series Multi Gas Detector clipped to his vest.

Nextteq’s new rugged and wearable NXM 4-gas portable monitor simultaneously detects up to four gases, including hydrogen sulfide (H2S), carbon monoxide (CO), oxygen (O2) and combustibles (LEL).


Operation: Easy-to-use operation, easy-to-read LCD display, and fast response helps protect workers and overall operations from potential hazards. To alert the user of unsafe conditions, the NXM series has audible, visual, and vibrating alarms including default or user defined high/low alarm set points as well as STEL and TWA alarm set points for toxic gases.



Options: The NXM series includes your choice of LEL sensor of either catalytic bead (Pellistor) or NDIR type sensor. The NDIR version provides increased run time and an LEL sensor that is immune to poisoning and can be used in inert (low O2) environments.


Data storage: Obtaining data is key and the NXM detector comes with both Event and Data logging. Event logging includes 30 events, 30 calibrations, and 30 bump tests. Data logging includes 2 month’s worth of continuous data storage of 1-second intervals, 24 hours a day, 7 days a week.


NXM Flyer & Spec Sheet

Ordering Options and Alarm Levels Presets

Note:  All alarms can be modified

NX90222 NXM-P NX90221 NXM-IR Gas Measuring Range Resolution Low Alarm High Alarm STEL TWA Cal Gas [Conc]
X X CO ppm 0-500 1 ppm 35 100 200 35 100 ppm
X X H2S ppm 0-100 0.1 ppm 10 20 15 10 25 ppm
X X O2 %vol 0-30 0.1% vol 19.5 23.5 18 % vol
X LEL (Pellistor) %vol 0-100 1% LEL 10 20 50% LEL
X LEL NDIR %vol 0-100 10 20 50% LEL

Reliable Gas Detection

Have peace of mind that NXM detectors are recording last 30 events, calibrations, and bump tests and continuously data logging every second, 24/7 to provide the data you need.

NXM-P or NXM-IR

  • Carbon monoxide (CO)
  • Hydrogen sulfide (Hâ‚‚S)
  • Oxygen (Oâ‚‚)


With your choice of LEL sensor:

  • LEL - NDIR
  • LEL - Pellistor


Question to Dr. Duffy, PhD., CIH

What is the difference between
Calibration and Bump Testing?



The basic definition of a bump test is that it determines if the unit can detect and alarm in the presence of the target gas, while calibration assures that the unit is accurate. The bump test assures the unit is functioning while a calibration assures that the unit is accurately reading the target gas concentration.


Occupational Safety and Health Administration (OSHA) states that “it is essential to keep records of all device testing and maintenance.” If a user experiences a reportable event with a portable NXS detector for example, then OSHA may require to see a history of all bumps and calibrations during the year prior to the incident. Testing and maintenance data can track other valuable information as well and new technology (like the NX IR link and software, or the NX docking station and software) makes record-keeping easier and more valuable than ever.

Dr. Duffy, PhD., CIH

NXM Approvals

A world map showing NXM Series Multi Gas Detector Approvals.

CSA: Class I, Division 1, Groups A, B, C, and/or D, T4 Ex ia IIC T4 Ga

Class I, Zone 0, AEx ia IIC T4 Ga


ATEX II 1 G Ex ia IIC T4 Ga


IECEx Ex ia IIC T4 GaNew Paragraph

 Data Management

New Paragraph

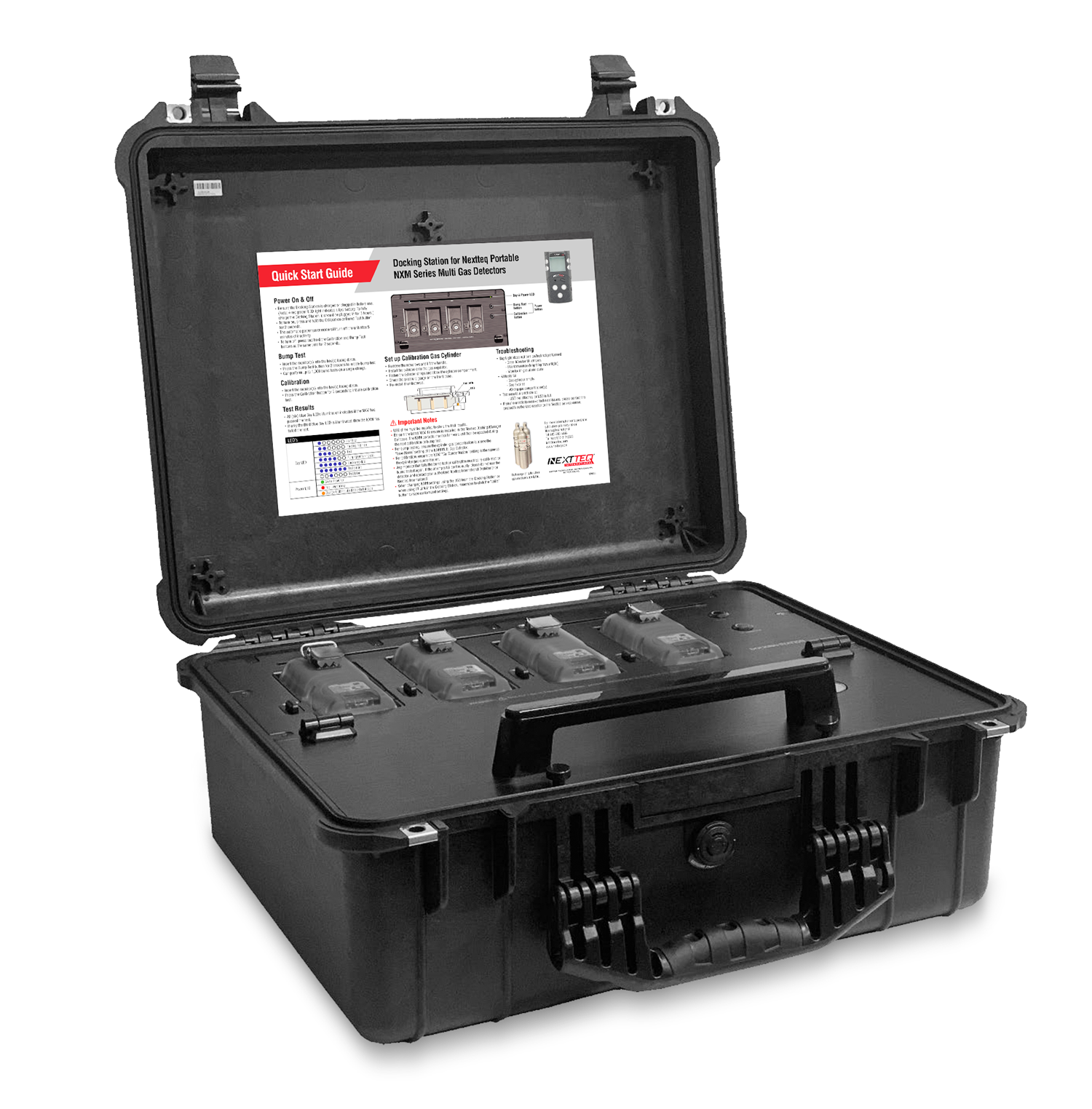

A Nextteq® NXM Docking station which allows communication with up to 4 portable NXM Multi Gas Detectors.

2) Nextteq® NXM Docking station

allows communication up to 4 NXM portables

DATA MANAGEMENT

Two options make it easy to comply with OSHA requirements when obtaining/storing your portable’s 30 events and/or establishing your portable settings:

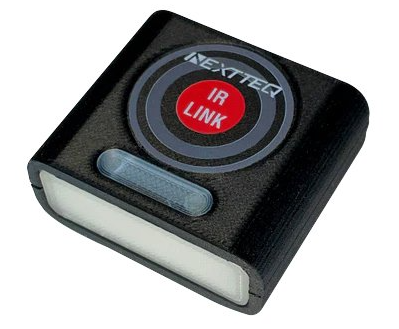

A NX-IR-Link for portable communication connection with 1 Multi Gas Detector.

1)  NX-IR-Link

for communication with 1 NXM portable connection

Nextteq's NX-IR-Link is designed to communicate to the NXM portable using Nextteq's IR-Link interface software for calibrating, bump testing, and event management.


Nextteq's NXM Docking Station is designed to calibrate and bump test up to four NXM portables simultaneously, helping to reduce time. It provides bump testing, event management and calibration from a simple to use multi-unit station.


Both options maintain all important event logs that demonstrate users are working within company requirements and you can obtain the following key data:

Each alarm event (30 events) records the following event details:

  • Date
  • Time
  • Duration of Alarm
  • Sensor Readings
  • Alarm Type



Each event log also captures the following detector information:

  • Product Name
  • Serial Number
  • Log Type
  • Firmware version
  • Alarm setpoints
  • Life remaining
  • Total number of events
  • Duration of events
  • Zero Calibration date
  • Span Calibration date

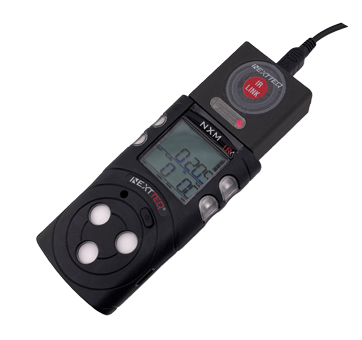

A Nextteq® NXM Series Multi Gas Detector.

NXM Multi-Gas Detector with IR Link

       NXM Accessories Ordering Information


This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more Learn more

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more


NXM Docking Station


P/N NX90226


NXM Docking Station

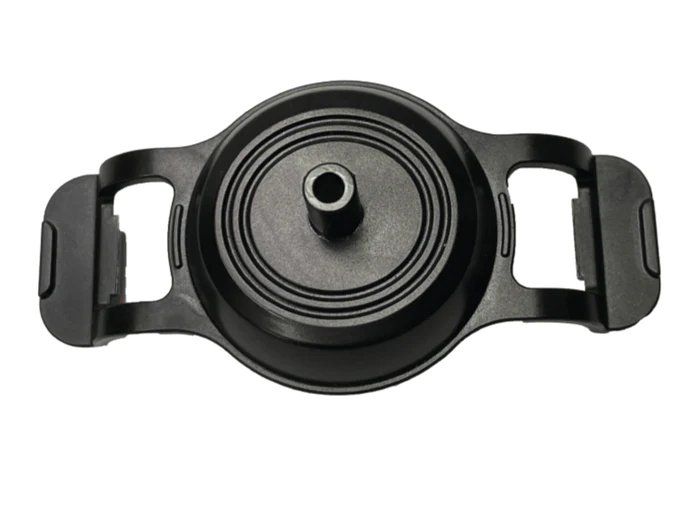

NXM Cal Cap


P/N NX90213


NXM Cal Cap

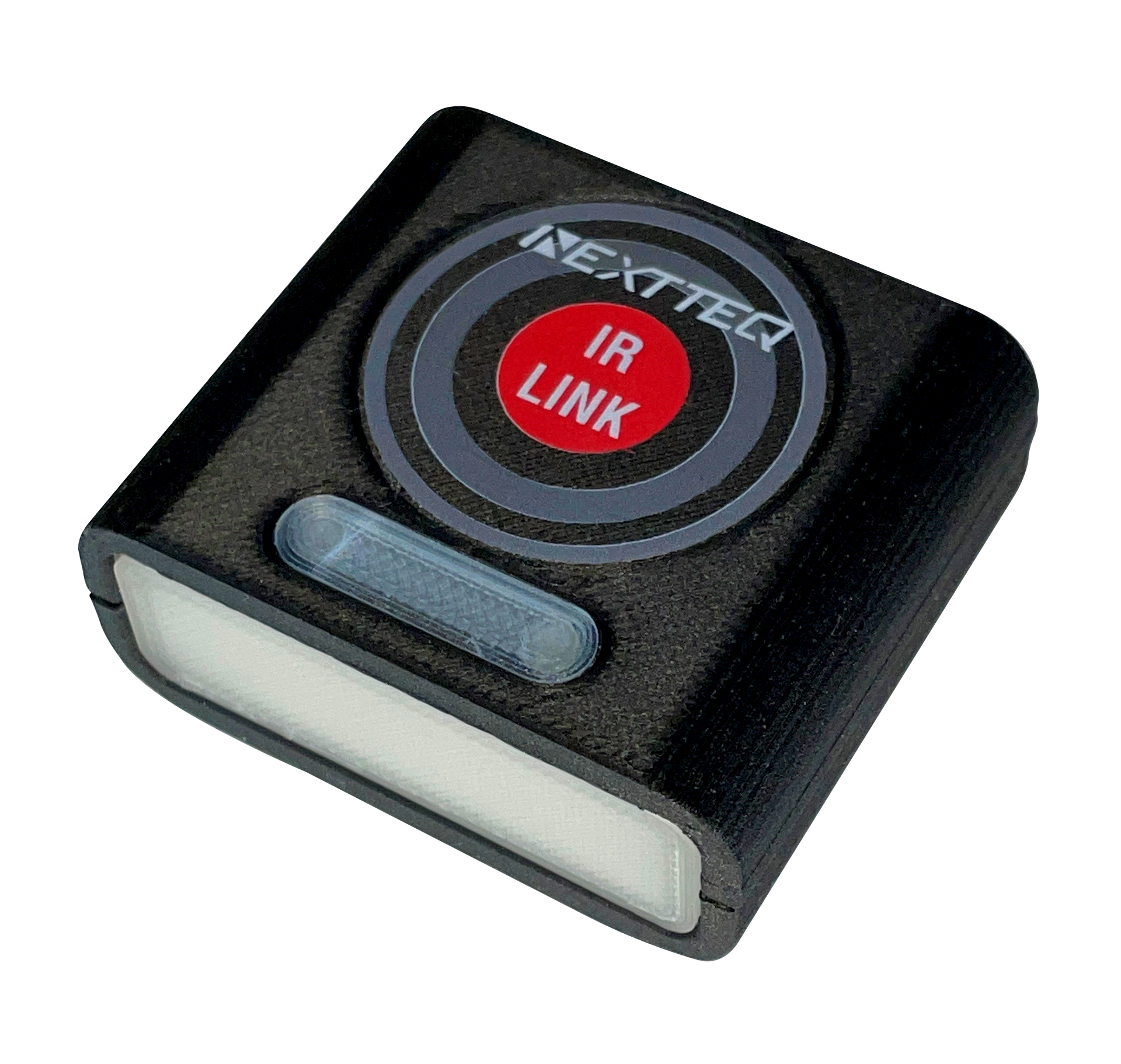

IR Link


P/N NX90182


IR Link

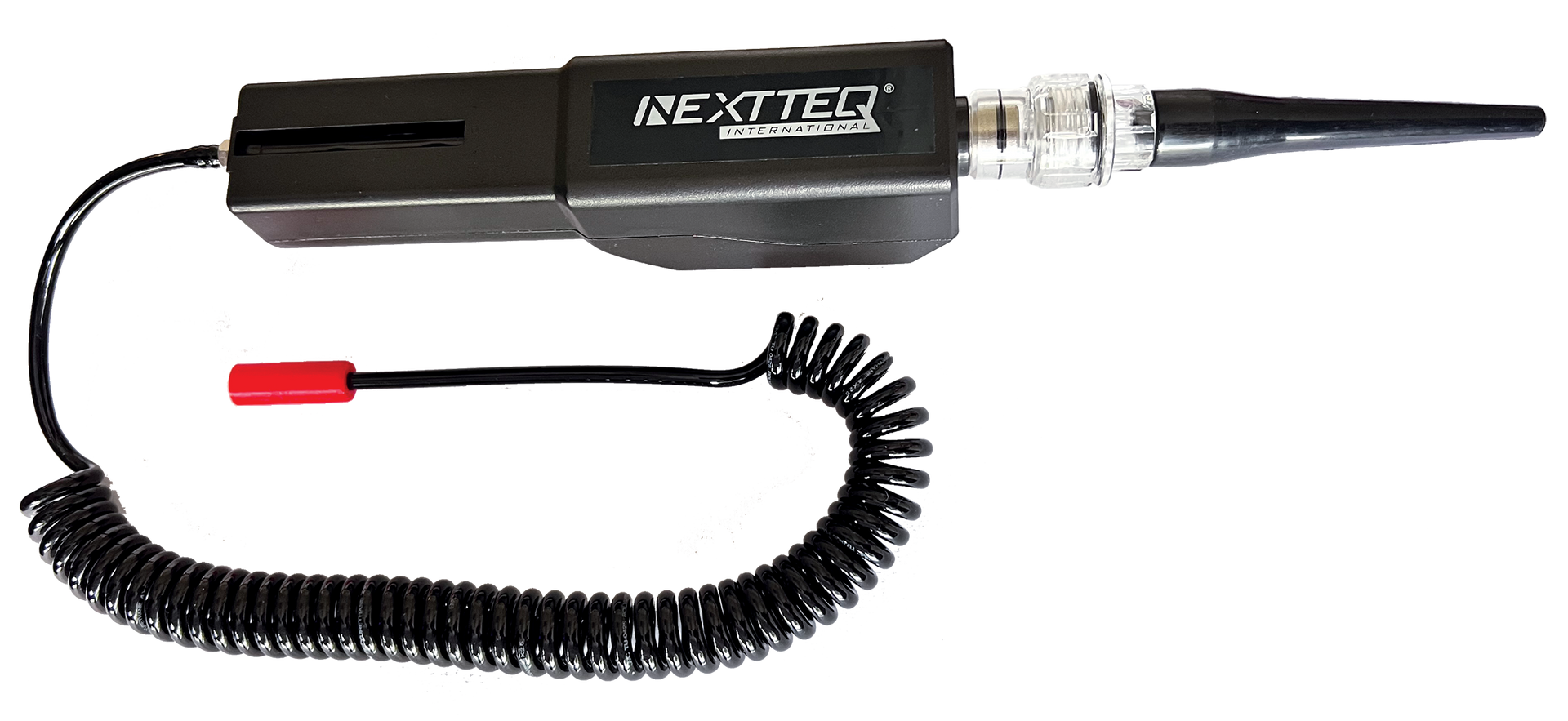

Remote Sampling Pump


P/N NX90563


Remote Sampling Pump

NXM Multi-Cradle Charger

P/N NX90633
