NXS Series

Single Gas Detectors

NH₃, CO, H₂, H₂S, NO₂, O₂, SO₂


Nextteq's NXS Series of Single Gas Detectors -

notably some of the most reliable detectors in the industry

A Nextteq® NXS Series Single Gas Detector with feature call-outs.

NXS Applications:


  • Oil & Gas Refining
  • Petrochemical and Chemical Processing Plants
  • Transportation
  • Water and Wastewater Treatment
  • Pharmaceuticals
  • Paints, Coatings, and Solvents Industries
  • Plastics and Synthetic Polymers
  • Pulp & Paper
  • Manufacturing
  • Municipalities
  • Food & Beverage
  • Contractor / Construction
  • General Industry


Ordering Information and Gas Ranges

Gas P/N Measuring Range Resolution Low Alarm* High Alarm*
Hâ‚‚S NX90201 0-100 ppm 0.1 ppm 5 ppm 10 ppm
CO NX90202 0-500 ppm 1 ppm 35 ppm 200 ppm
Oâ‚‚ NX90203 0-30% Vol 0.1% Vol 19.5% Vol 23.5% Vol
SOâ‚‚ NX90204 0-50 ppm 0.1 ppm 2 ppm 5 ppm
NH₃ NX90205 0-100 ppm 1 ppm 25 ppm 35 ppm
Hâ‚‚ NX90206 0-1000 ppm 2 ppm 50 ppm 100 ppm
NOâ‚‚ NX90207 0-20 ppm 0.1 ppm 1 ppm 5 ppm

*Alarms can be reset to other values using the NX-IR-Link or Docking Station

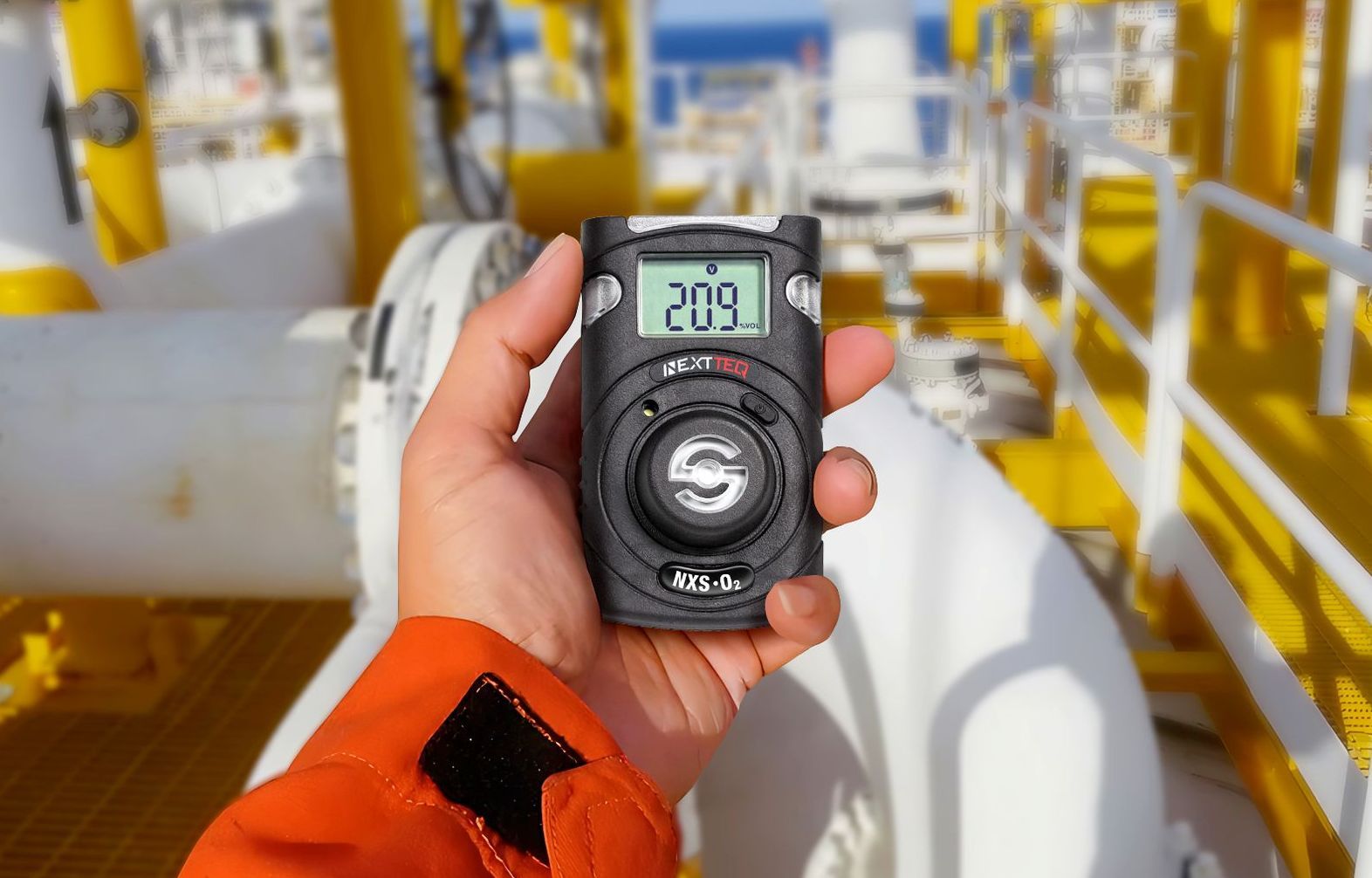

A man's hand holding a Nextteq® NXS Series Single Gas Detector.

NXS series single gas disposable detectors protect workers from oxygen deficiency and toxic gases. They operate continuously without sensor or battery replacement. NXS portable detectors measure gas continuously, display the concentration and raise an alarm when a risk occurs. Simply activate and you are ready to go for two years!

NXS Flyer & Spec Sheet

Reliable Gas Detection


 Have peace of mind that NXS detectors are working 24/7 non-stop, recording events for two years to protect workers from hazardous gases.

Choose single-gas detection for:

  • Ammonia (NH₃)
  • Carbon Monoxide (CO)
  • Hydrogen (Hâ‚‚)
  • Hydrogen Sulfide (Hâ‚‚S)
  • Nitrogen Dioxide (NOâ‚‚)
  • Oxygen (Oâ‚‚)
  • Sulfur Dioxide (SOâ‚‚)

Q&A from Nextteq’s Dr. Duffy:



What is the difference between Calibration and Bump Testing?



The basic definition of a bump test is that it determines if the unit can detect and alarm in the presence of the target gas, while calibration assures that the unit is accurate. The bump test assures the unit is functioning while a calibration assures that the unit is accurately reading the target gas concentration.



Occupational Safety and Health Administration (OSHA) states that “it is essential to keep records of all device testing and maintenance.” If a user experiences a reportable event with a portable NXS detector for example, then OSHA may require to see a history of all bump tests and calibrations during the year prior to the incident. Testing and maintenance data can track other valuable information as well and new technology (like the NX IR link and software, or the NX docking station and software) makes record-keeping easier and more valuable than ever.



Dr. Jeffrey S. Duffy, PHD, DABT, CSP, CIH

Nextteq International VP of Technical Development / Industrial Hygiene

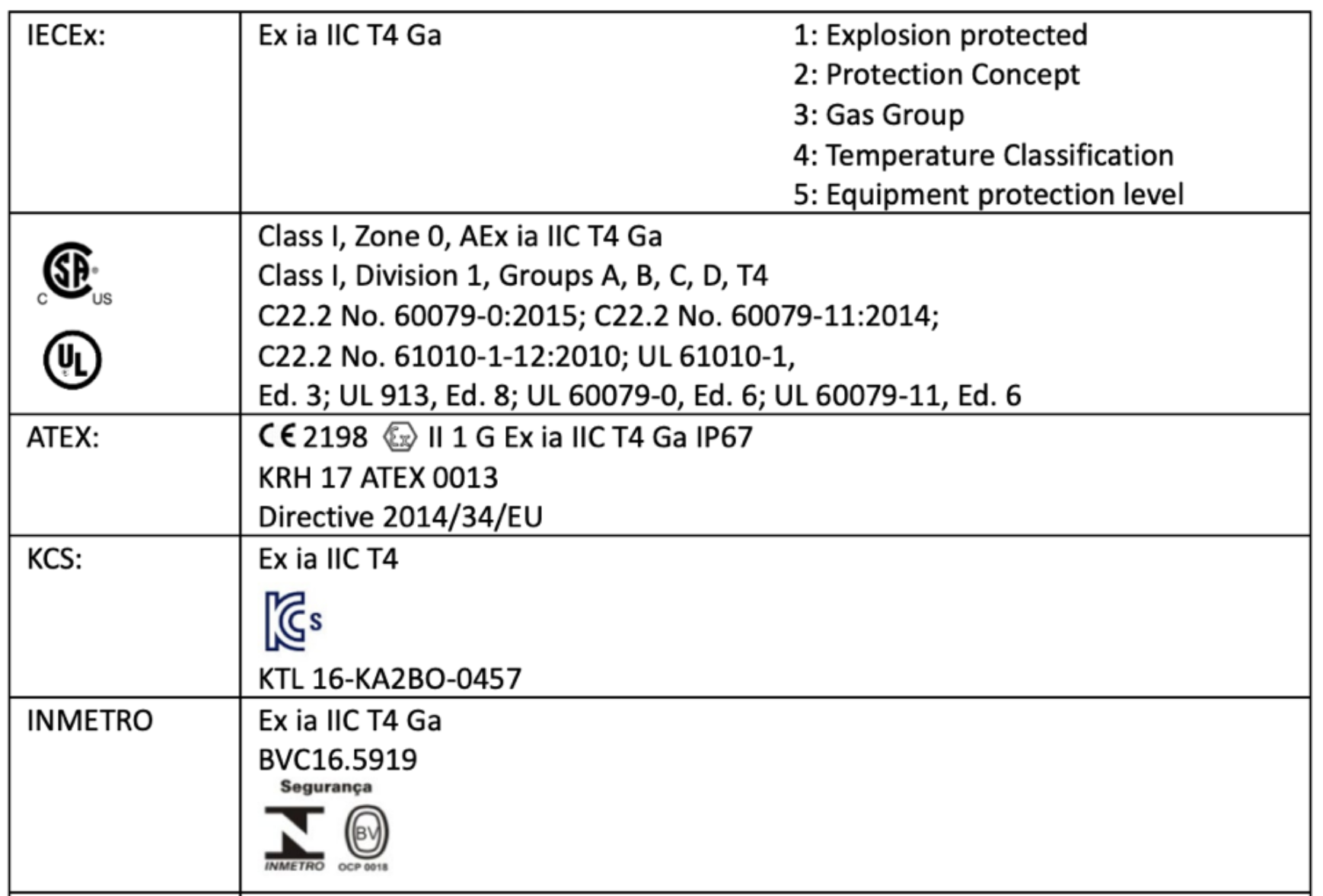

NXS Approvals

Data Managment

New Paragraph

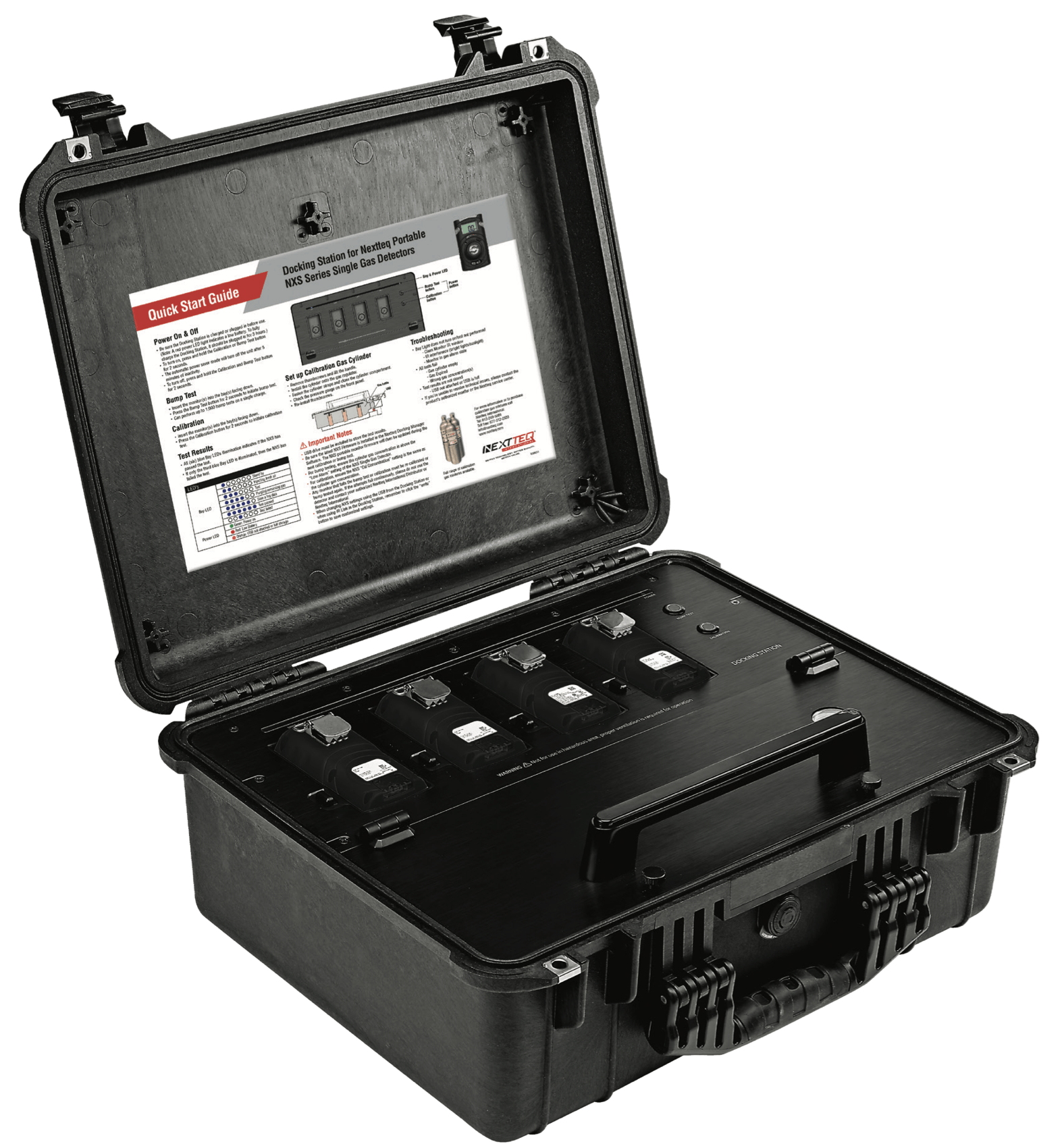

A Nextteq® NXM Docking station which allows communication with up to 4 portable NXM Multi Gas Detectors.

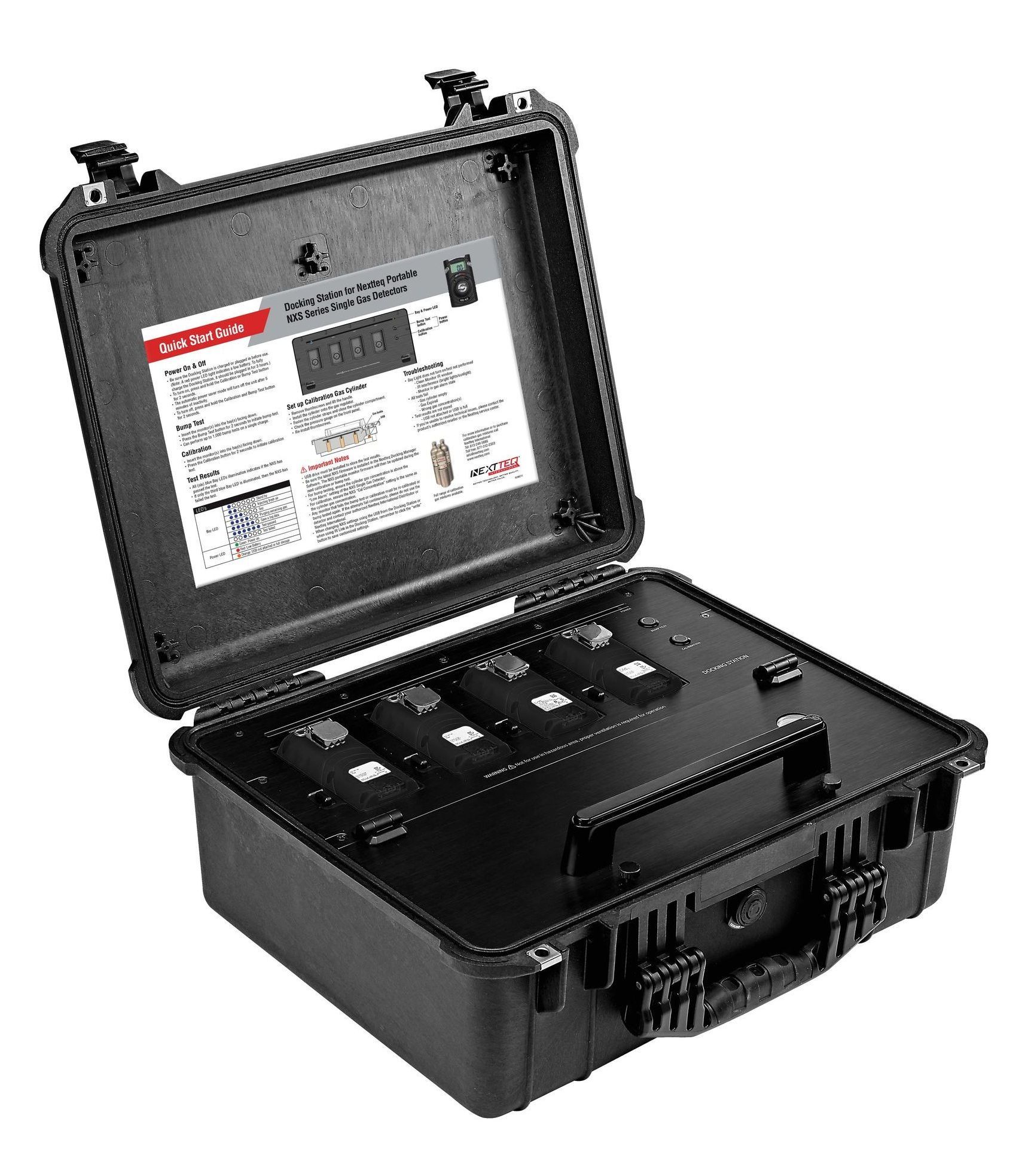

2) Nextteq® NXS Docking station

allows communication up to 4 NXS portables

DATA MANAGEMENT

Two options make it easy to comply with OSHA requirements when obtaining/storing your portable’s 30 events and/or establishing your portable settings:


A NX-IR-Link for portable communication connection with 1 Multi Gas Detector.

1)  NX-IR-Link

for communication with 1 NXS portable connection

Nextteq's NX-IR-Link is designed to communicate to the NXS portable using Nextteq's IR-Link interface software for calibrating, bump testing, and event management.


Nextteq's NXS Docking Station is designed to calibrate and bump test up to four NXS portables simultaneously, helping to reduce time. It provides bump testing, event management and calibration from a simple to use multi-unit station.


Both options maintain all important event logs that demonstrate users are working within company requirements and you can obtain the following key data:

Each alarm event (30 events) records the following event details:

  • Date
  • Time
  • Duration of Alarm
  • Sensor Readings
  • Alarm Type



Each event log also captures the following detector information:

  • Product Name
  • Serial Number
  • Log Type
  • Firmware version
  • Alarm setpoints
  • Life remaining
  • Total number of events
  • Duration of events
  • Zero Calibration date
  • Span Calibration date


A Nextteq® NXM Series Multi Gas Detector.

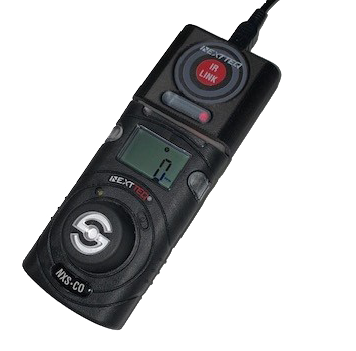

NXS Single Gas Detector with IR Link

       NXS Accessories Ordering Information

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more Learn more

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more


NXS Docking Station


P/N NX90225



NXS Cal Cup


P/N NX90209


IR Link


P/N NX90182


Remote Sampling Pump


P/N NX90563

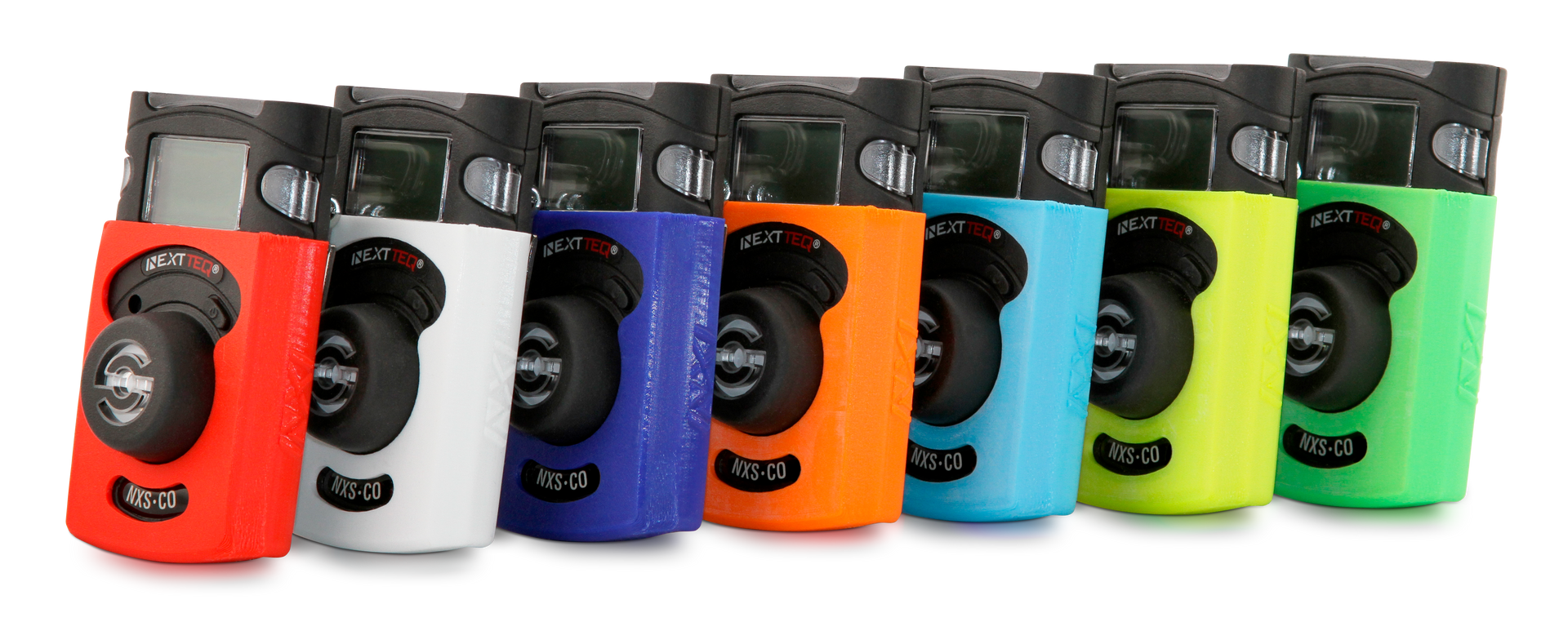

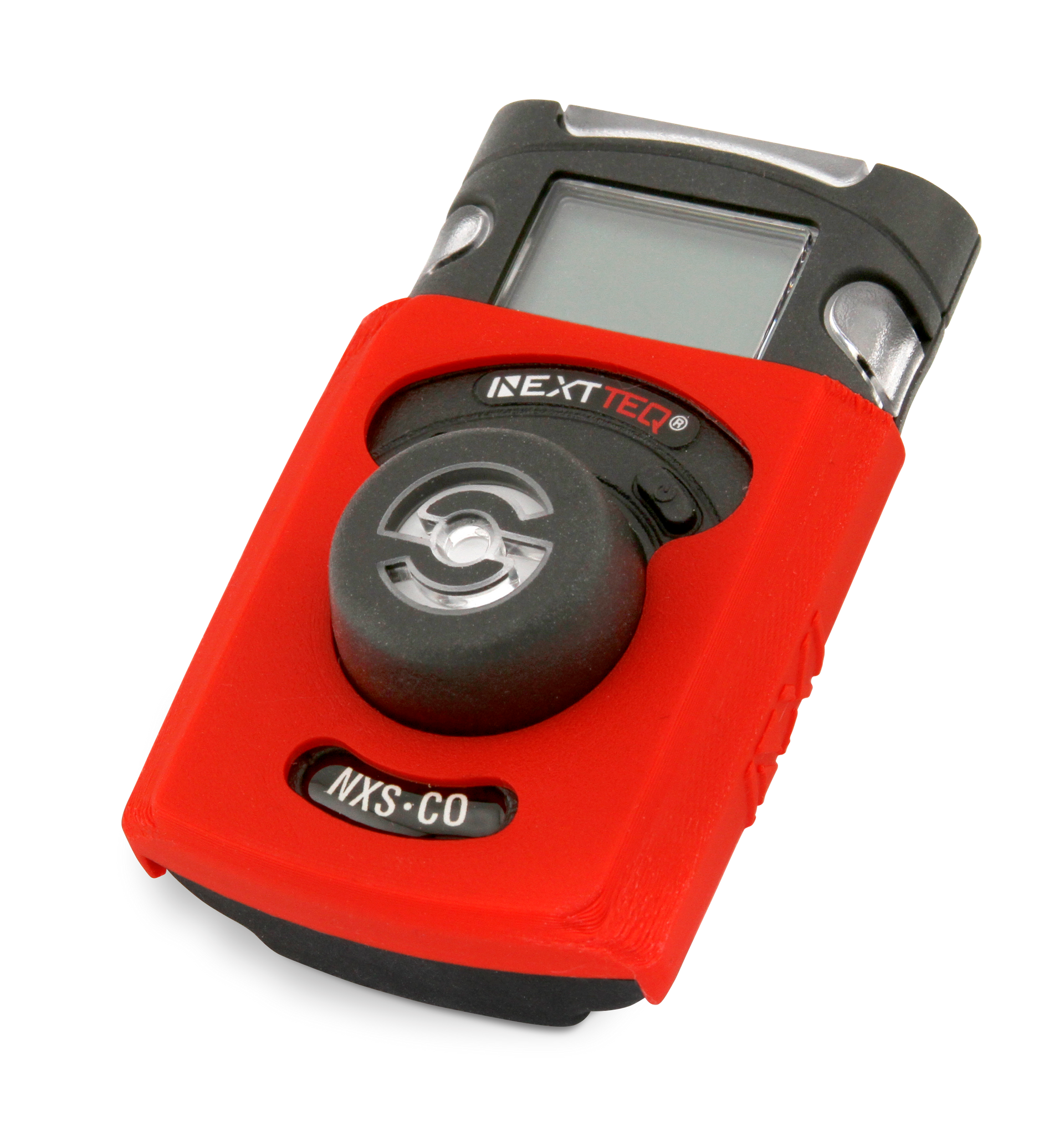

NXS Visi Cover -

P/N NX90570-03 NXS Visi Cover 3 pk

     P/N NX90570-25 NXS Visi Cover 25 pk

Optional Visi Cover Colors

Red, White, Dark Blue, Orange, Light Blue, Yellow, Light Green
Note: Optional Colors Available Upon Request
